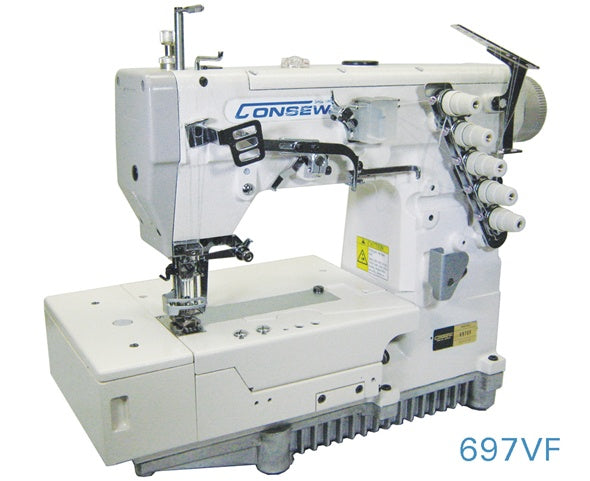

Consew 697VF

Name: Consew 697VF
Brand: My Store
SKU: 697VF
Availability: InStock

SKU: 697VF

Overview

High Speed Coverstitch Machine

With: Fully Automatic Lubrication, Differential Feed With Micrometric Adjustment, Pushbutton Stitch Regulator, Thread Lubricating And Needle Cooling System.
Also available: 697BVF for Binding Attachments

Product Resources

Download Manual Download Parts Book Download Catalog Page

Applications

Sewing light to heavy-weight materials
Model 697VF (flat-bed) for general seaming

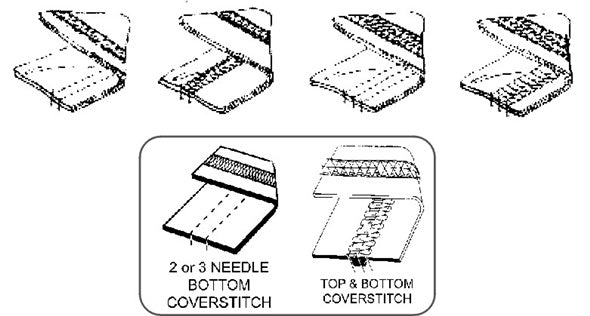

Suitable for hemming, tape binding, elastic inserting, etc.

Features

Speed, Max. up to 6000 s.p.m.*
Push-button stitch regulator
External cooling of oil supply
Fully automatic lubrication with visual flow controls
Lubricating oil continuously filtered by replaceable filter
Differential feed with micrometric adjustment for shirring and stretching, ratio up to 4 to 1
Intermittent action possible
Standard type UY128GAS needles
Silicone-based needle cooling and thread lubricating

Specifications

Number of Needles: 2, 3
Feeding Mechanism: Differential
Workspace: Standard Workspace
Standard or Full Function: Standard Functions
Speed, Max (S.P.M.): 6000
Max Stitch Length: 1.4 ~ 3.6mm
Presser Foot Lift: 7.0mm
Needle Bar Stroke: 31mm
Needle Used: UY128GAS
Looper: 2
Standard Distance Between Needles: 5.6mm 3-needle
Differential Ratio: 1 : 0.7 ~ 1 : 2.0
Two Needle Needle Distances: Comes with 3-needle, 5.6 mm 3 Needles: 5.6, 6.4 mm
