Consew 7360R-7DD-3

• Sewing light to heavy-weight materials including cottons, knits, polyester, nylon, sheer fabrics, denim, and lightweight leather
• Suitable for stitching products such as blouses, shirts, men's, ladies, and children's apparel, uniforms, overalls, lingerie, etc.
• Heavyweight fabrics such as jeans can be sewn by changing the needle plate, feed dog, foot, stitch regulator, hook, and needle bar

• Fully automatic lubrication with recirculating high-pressure pump and oil glass indicator
• Noise and vibration-absorbing table mounting
• Automatic reverse

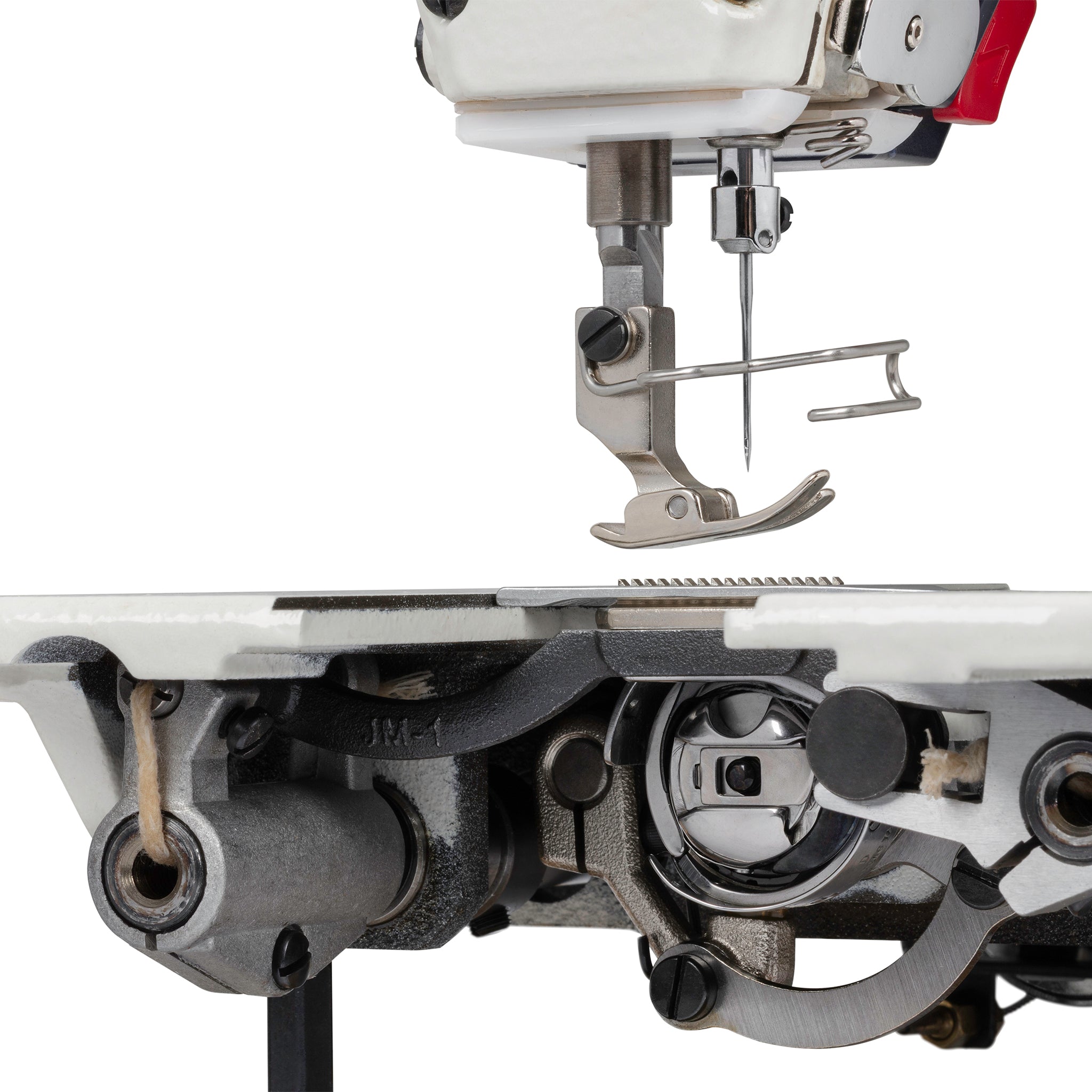

• Auto-lubrication rotary hook
• Under bed thread trimmer
• Needle positioning
• Electric and manual foot lift
• Built-in stitch counter
• Locking stitch regulator
• Built-in bobbin winder
• Built-in LED light with level settings and on/off switch
• Built-in 3/4HP, 550 watt Direct Drive Motor (110v or 220v)
• Electric thread clamp (holds thread after thread trim)

• Number of Needles: 1 (Single)
• Feeding Mechanism: Drop Feed
• Workspace: Standard Workspace
• Standard or Full Function: Automatic Functions
• Speed, Max (S.P.M.): 5000
• Motor Type: Direct Drive
• Clearance Under Presser Foot: 1/4" (6mm), 1/4" (6mm)
• Stitch Length: 4 s.p.i. (6.2mm)
• Work Space: 10" (258mm)
• Needle: DBX1
• Bobbin: L
• Bed Size: 7" x 18 7/8" (177mm x 477mm)
• Stitch Type: 301, 301
• Weight: 150 lbs
• Needle Bar Stroke: 1 1/4" (31.8mm), 1 1/4" (31.8mm)

Control Panel Manual
