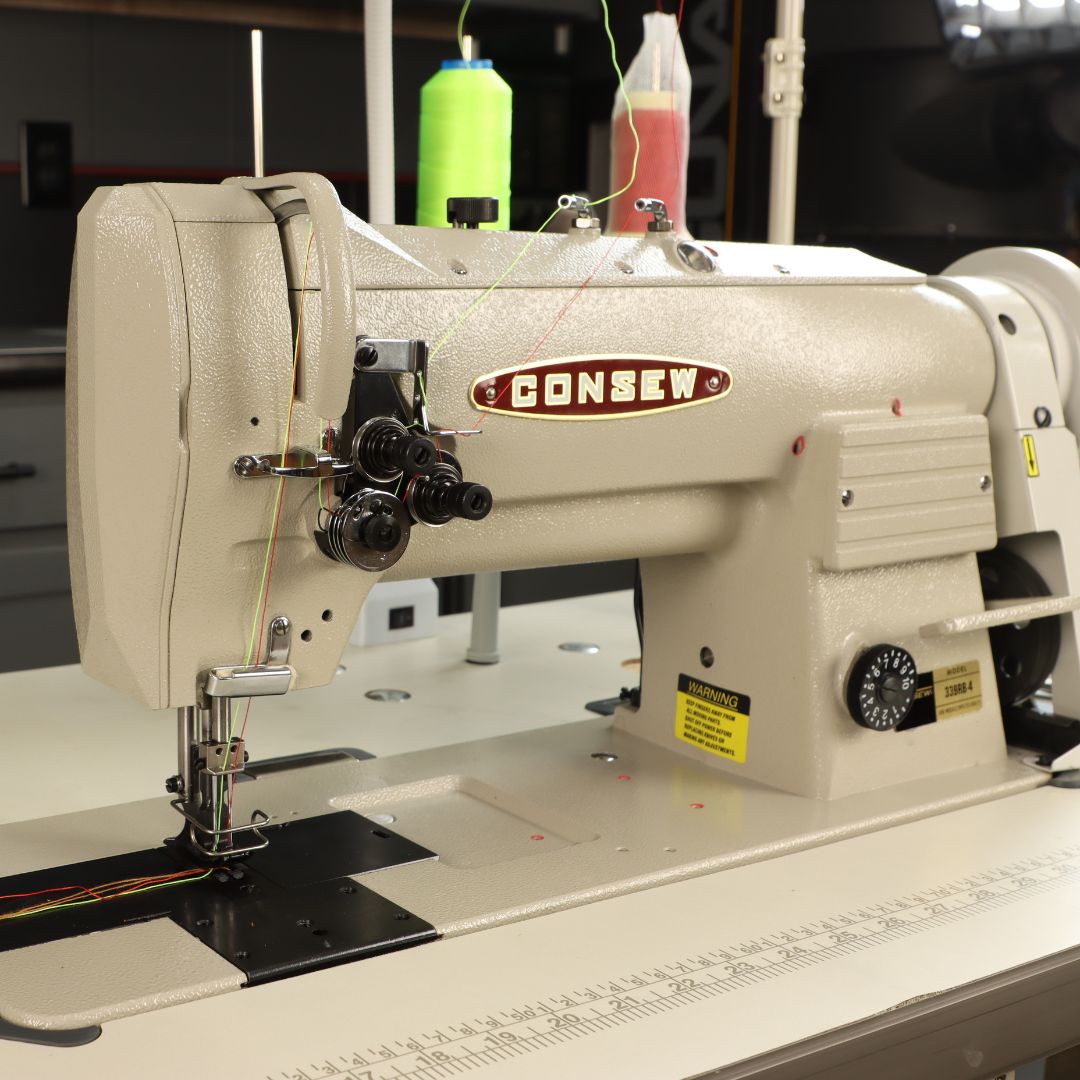

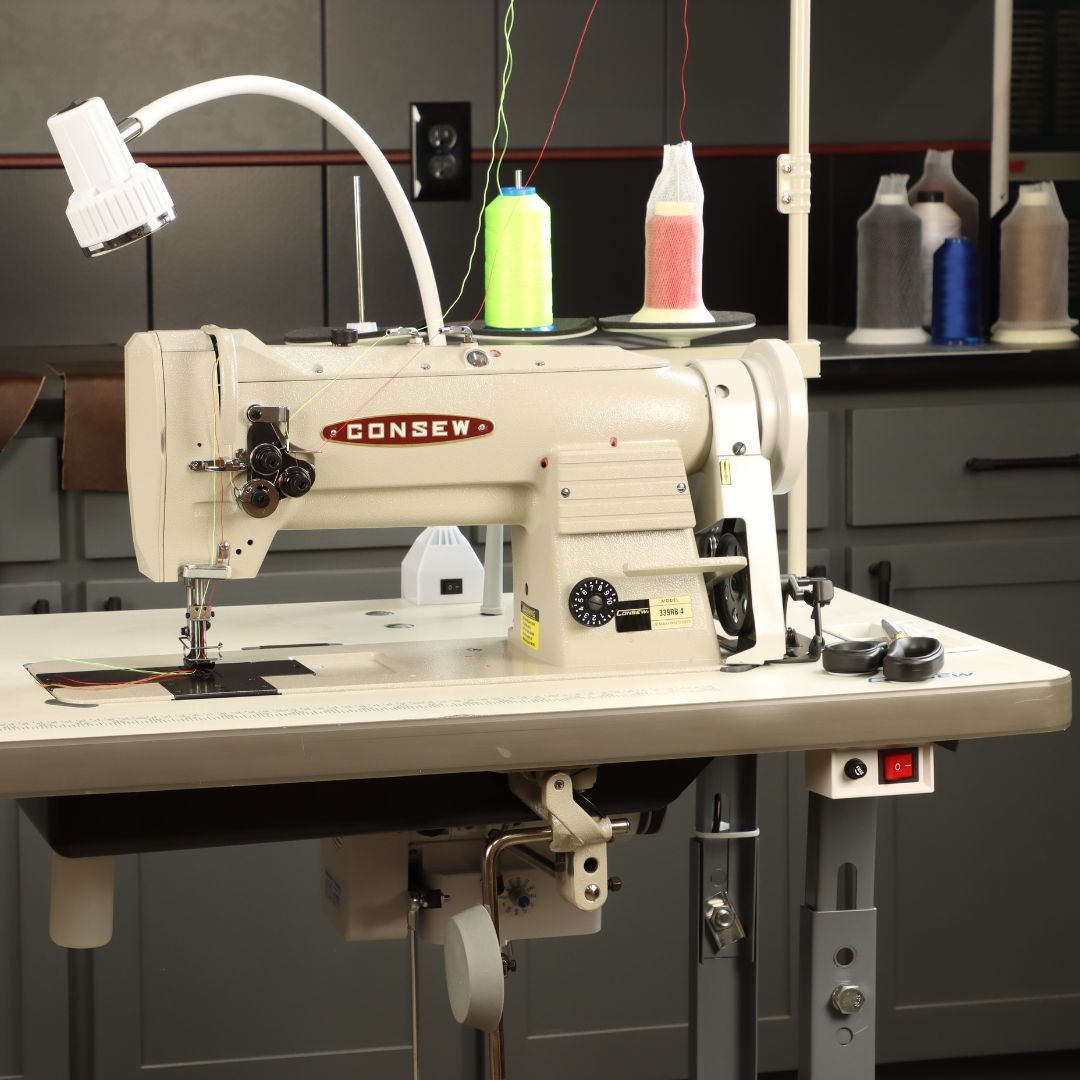

Consew 339RB-4

• Suitable for sewing light to heavy-weight materials such as leather, vinyl, upholstery, synthetics, canvas, and various coated and laminated products.
• Designed for stitching auto, boat, and furniture upholstery, tarpaulins, covers, sails, tents, camping trailer covers, awnings, umbrellas, tops, bags, luggage, handbags, travelware accessories, sports and camping equipment, wearing apparel, outdoor clothing, canvas shoes, slippers, and orthopedic appliances.
• Ideal for double needle seaming, binding, taping, and piping operations.

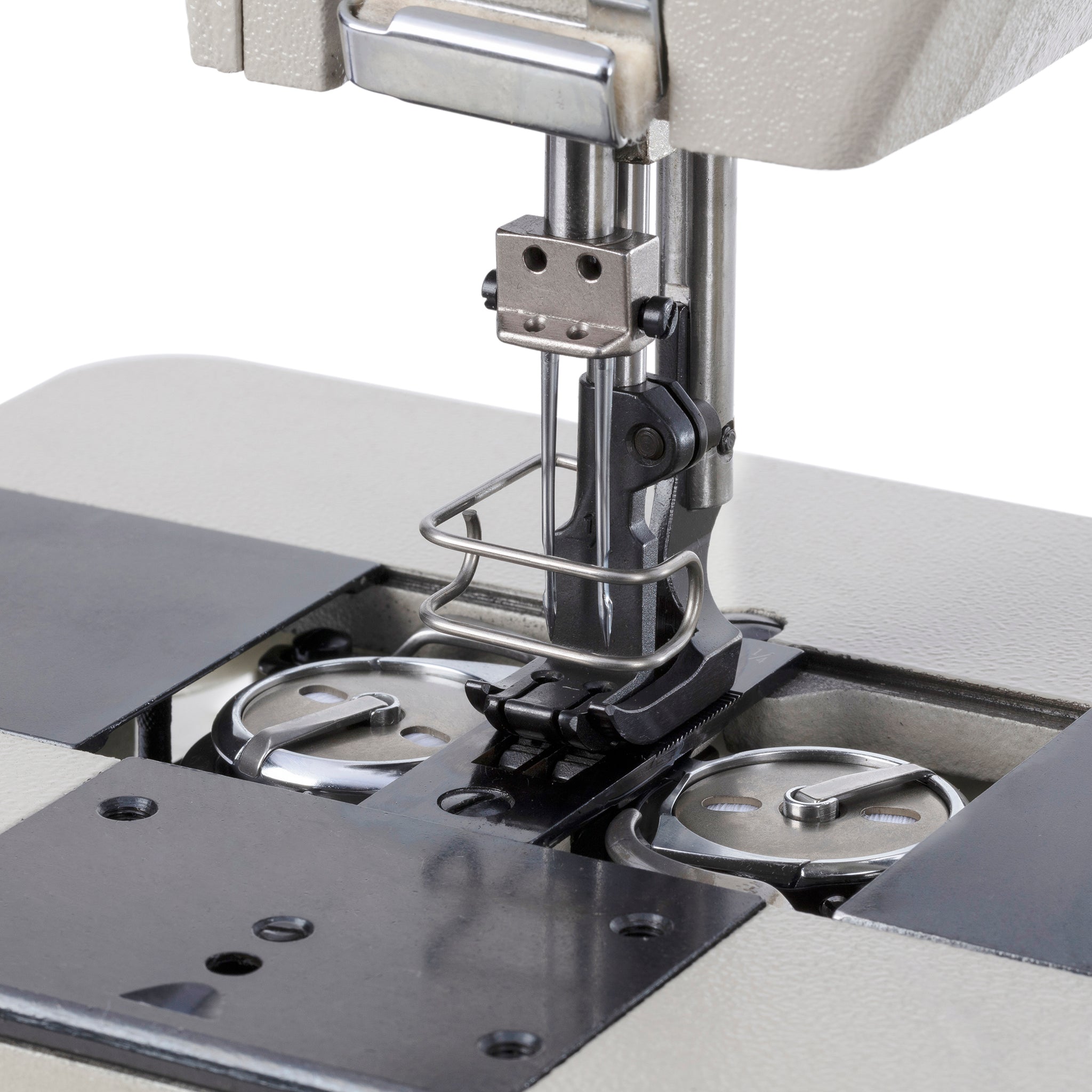

• Two-needle mechanism for parallel lines of stitches.
• Compound feed, walking foot mechanism ensures even feeding of material.
• Large hooks and bobbins for longer operation between bobbin changes.
• Centra-Lube® semi-automatic lubrication system.
• Automatic hook lubrication.

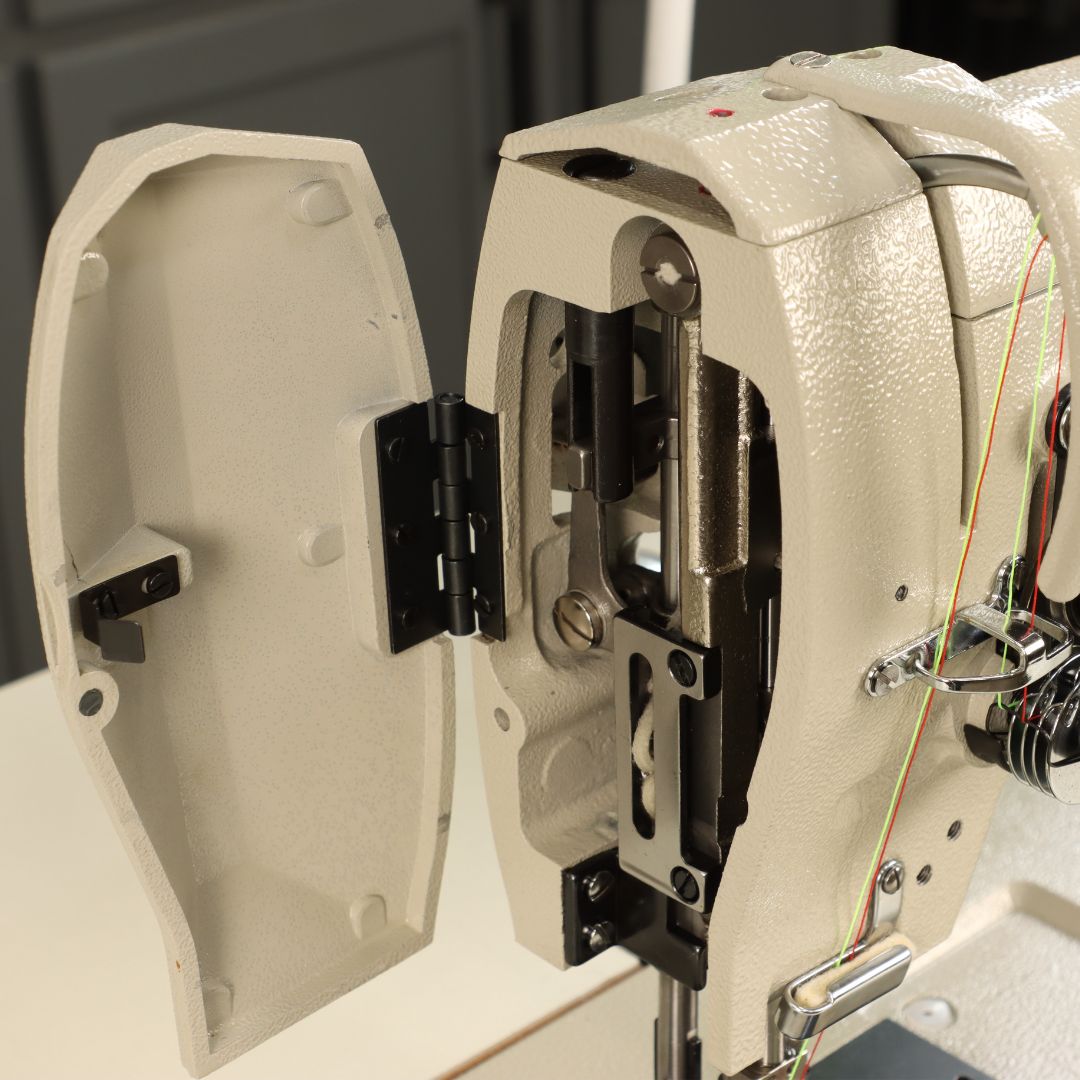

• Oil-fed take-up.
• Simple adjustment for raising and lowering the center foot to accommodate different material thicknesses.

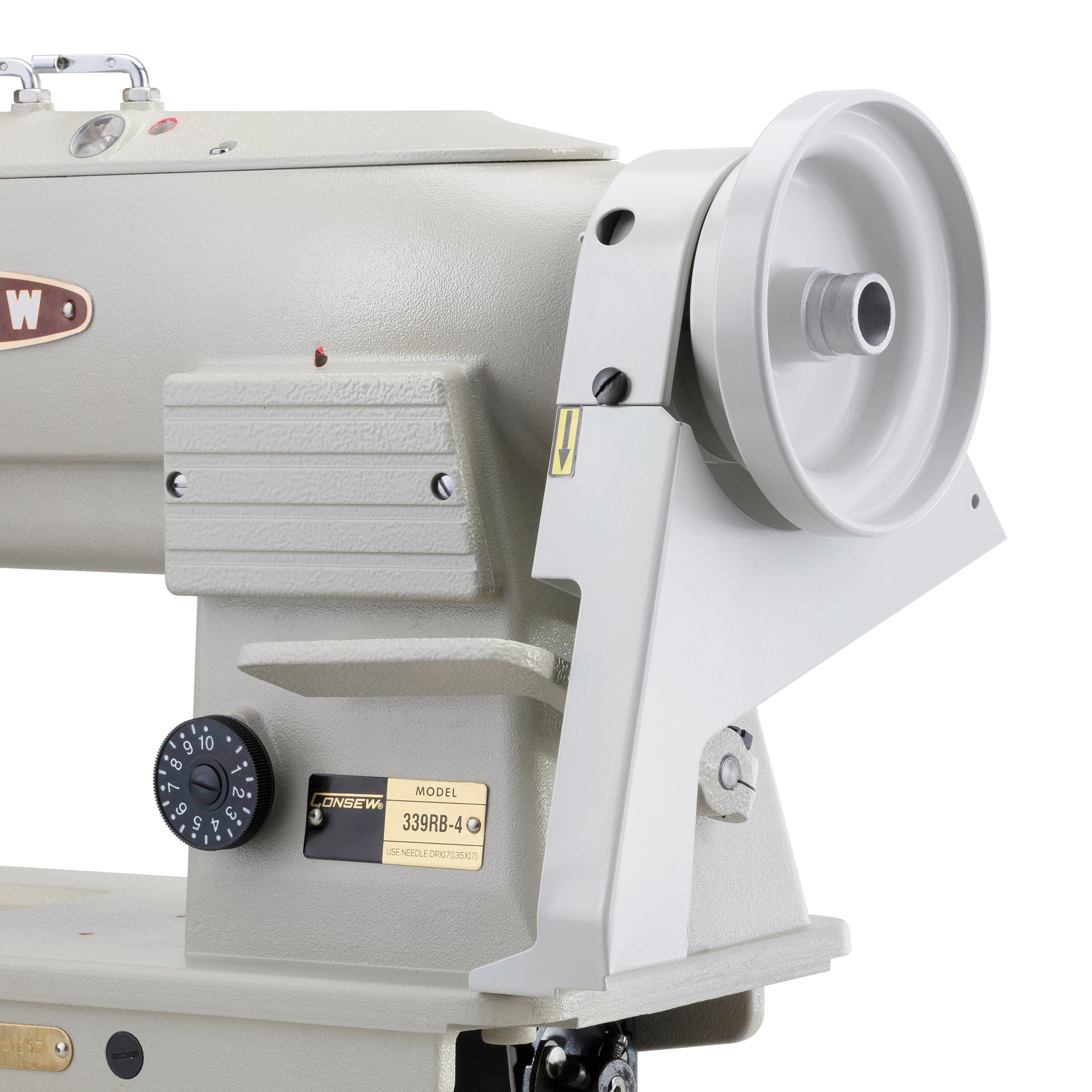

• Safety clutch protects hooks from damage.

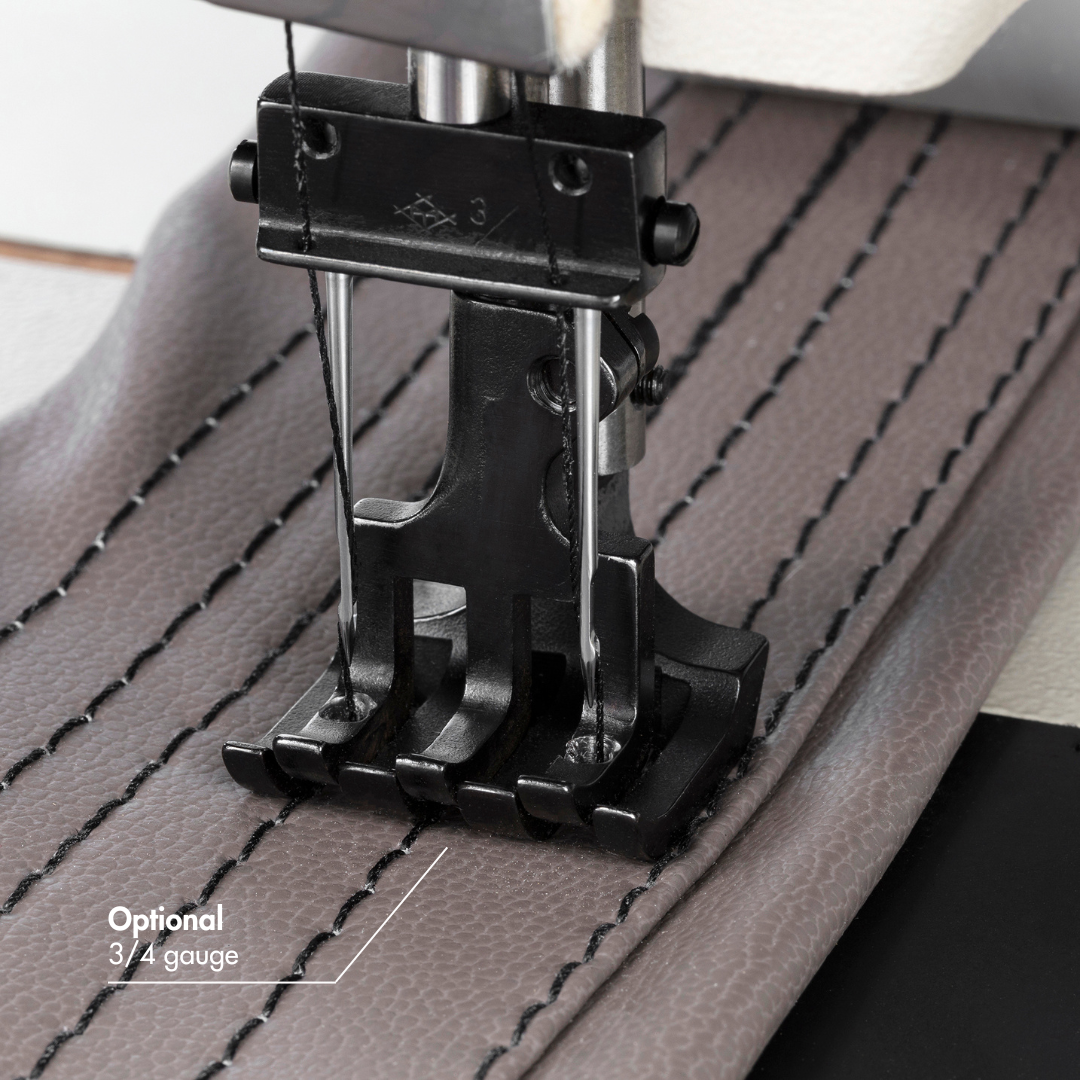

• Various needle gauges available.

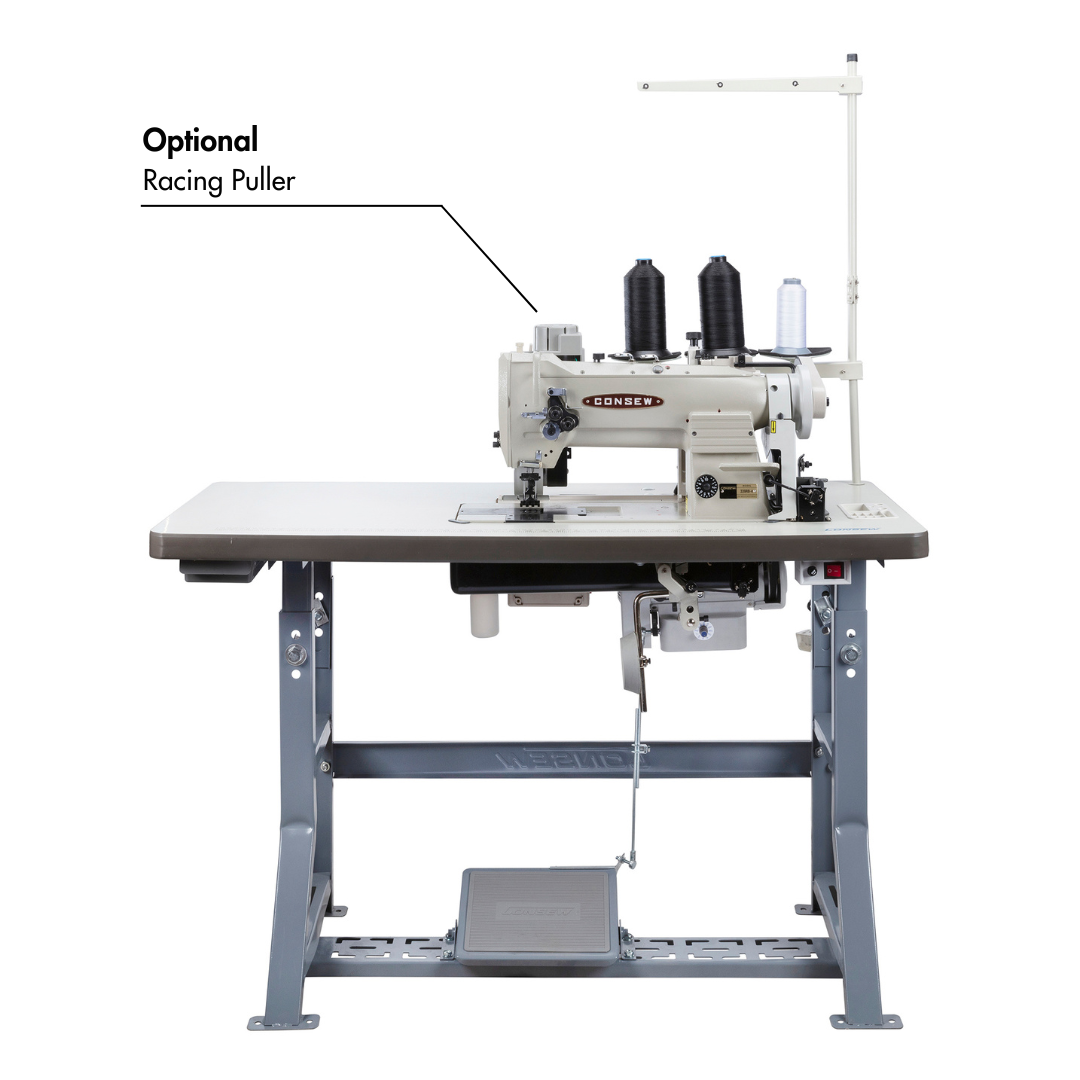

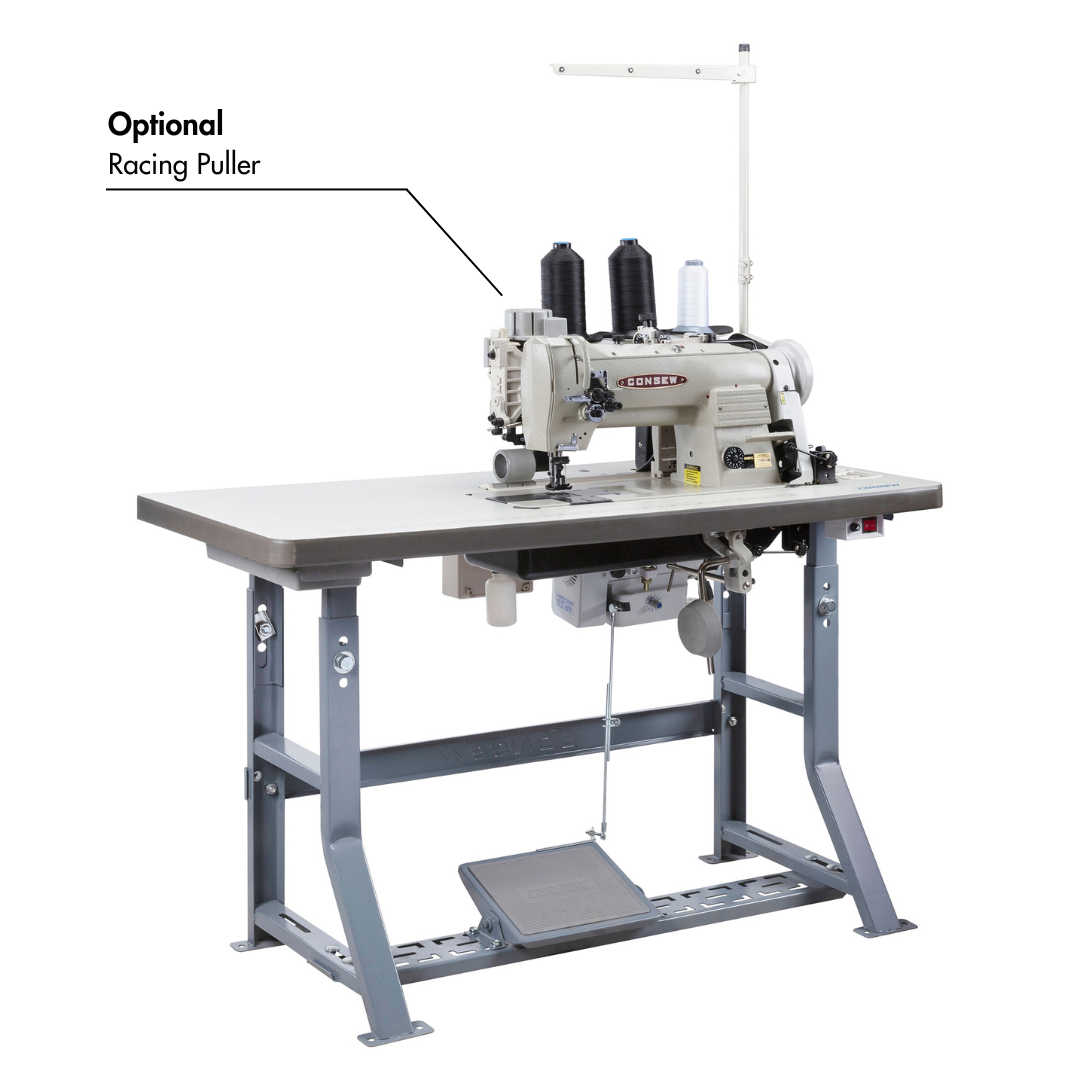

• Synchronized puller available (add suffix -P).
• Large hooks, bobbins, and reverse feed with long stitch (2 1/2 s.p.i.).

Number of Needles: 2 (Double)

Feeding Mechanism: Walking Foot

Workspace: Standard Workspace

Standard or Full Function: Standard Functions

Speed, Max (S.P.M.): 3000

Clearance Under Presser Foot: 9/16" (14mm)

Stitch Length: 2 1/2" s.p.i. (10mm)

Hook Size: Large

Work Space: 10" (258mm)

Needle: 135 x 17

Bobbin: Metal 15041, Pre-wound S or U

Bed Size: 7" x 20 3/8" (177mm x 518mm)

Stitch Type: 301

Weight: 183 lbs

Needle Bar Stroke: 1 5/16" (33mm)

Available Needle Spacings: 1/8" (3.2mm) - 1 1/2" (38.1mm)

Standard Needle Spacing: 1/4" (6.4mm)

Hook: 15502

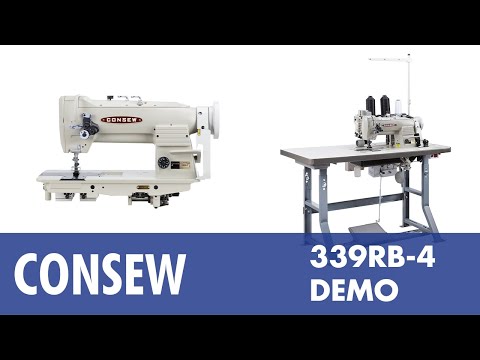

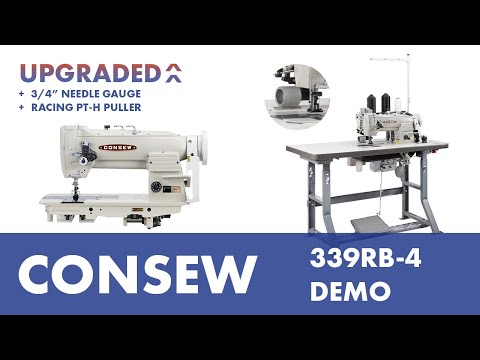

• Consew Model 339RB-4 Demo
